| Module Dimension(WxH): | 320x160mm/12.59"x6.29" | Panel Dimension(WxHxD): | 640x1920x35mm/25.19"x75.59"x1.37" |
|---|---|---|---|
| No. of Module/panel(WxH): | 2x12 | Panel Material: | Aluminum |
| Panel Weight: | 48kg(105.82Ibs) | Gray Scale: | 16bit |
| Contrast Ratio: | 4000:1 | Refresh Rate: | 3840hz |
| Brightness: | >=600nits | Viewing Angle(H/V): | 160/140 |
| Expected Lifetime: | 100,000hrs | Service: | Rear |
| IP Rating(Front/Rear): | IP40/IP21 | 証明: | CCC,CE,ETL,RoHS |

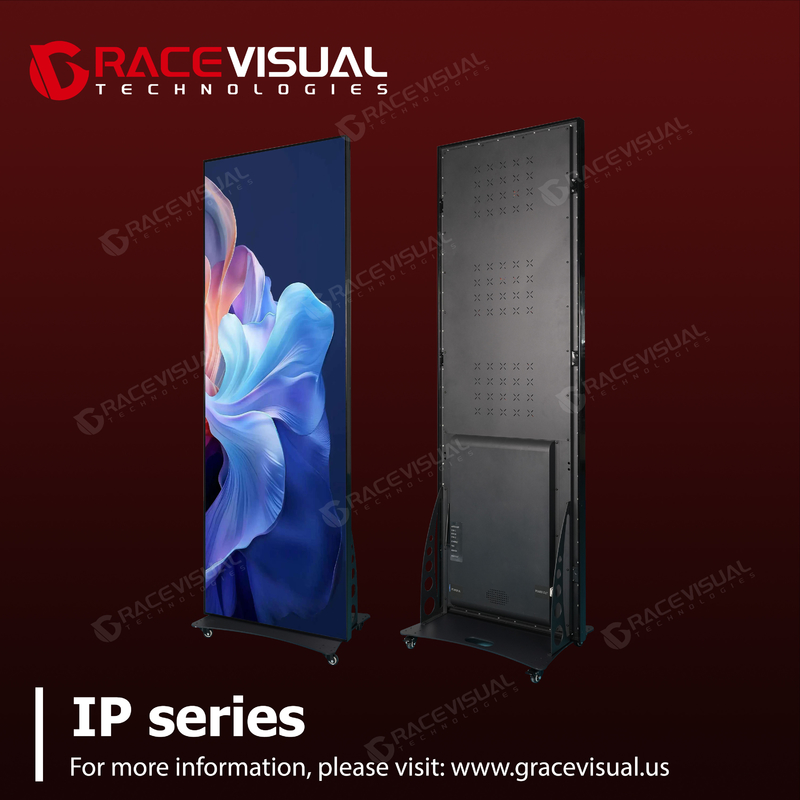

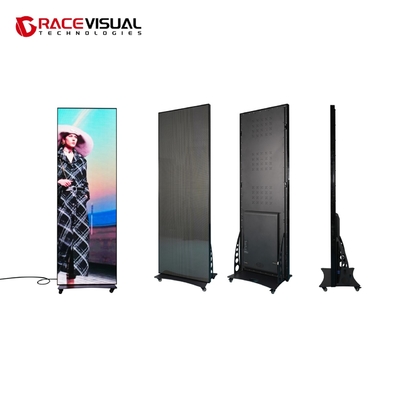

IP Series Ultra-Slim Display Product Introduction
Ultra-Slim & Lightweight Design, Flexible Adaptability
Extremely Slim Profile: Display thickness of only 45mm, paired with an aluminum alloy panel for durability and modern aesthetics.

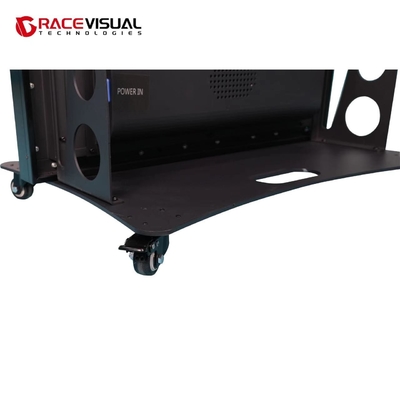

Lightweight & Portable: Net weight of 48kg per panel (including base). Optional wheeled base for easy transportation and installation, ideal for dynamic setups in malls, exhibitions, weddings, and more.
Versatile Installation Methods for Multi-Scenario Use
Supports standalone placement, wall-mounting, ceiling suspension, and multi-panel splicing for diverse spatial layouts.
Modular design (e.g., 2×12 module configuration) allows seamless expansion to create large-scale immersive displays.
Exceptional Visual Performance, Professional-Grade Quality
High Refresh Rate (3840Hz): Eliminates motion blur, perfect for fast-paced content like live sports broadcasts.
Wide Viewing Angle & High Contrast: 160° horizontal / 140° vertical viewing angles and 4000:1 contrast ratio ensure vivid colors and sharp details from all angles.
High Brightness (≥600nits): Maintains clarity even in bright environments, suitable for storefronts, outdoor displays, and more.
Energy Efficiency & Long-Term Reliability
Low Power Consumption: Average power usage of 160-200W per panel, reducing operational costs and environmental impact.
Extended Lifespan: Expected lifetime of 100,000 hours minimizes maintenance and replacement frequency.
Robust Environmental Tolerance: Operational temperatures from -10°C to 60°C and storage temperatures from -30°C to 60°C, ensuring performance in harsh conditions.
Smart Control & Safety Assurance
Remote management via mobile, PC, or cloud platforms for effortless multi-screen content control.
Certified with CCC, CE, ETL, and RoHS. IP40 (front)/IP21 (rear) rating for dust and water resistance, ensuring safety and reliability.
| Model | Pixel Pitch | Pixel Density | Recommended Applications |
|---|---|---|---|
| IP-1.2 | 1.25mm | 640,000px/m² | Luxury retail stores, high-end showrooms (close-up viewing) |
| IP-1.5 | 1.538mm | 422,753px/m² | Conference rooms, hotel lobbies (balance of clarity and cost) |
| IP-1.8 | 1.86mm | 289,050px/m² | Large exhibitions, stage backdrops (mid-to-long distance viewing) |
| IP-2.5 | 2.5mm | 160,000px/m² | Outdoor advertising, stadiums (long-distance large-scale displays) |
The IP Series Ultra-Slim Display combines ultra-slim design, flexible installation, and superior image quality to meet diverse commercial display needs. Its high brightness, wide viewing angles, and energy-efficient design make it adaptable to scenarios ranging from luxury retail to outdoor advertising. With international certifications and an extended lifespan, the IP Series reduces total ownership costs while delivering immersive visual experiences. Whether enhancing brand presence or elevating event engagement, the IP Series is the ultimate choice.
